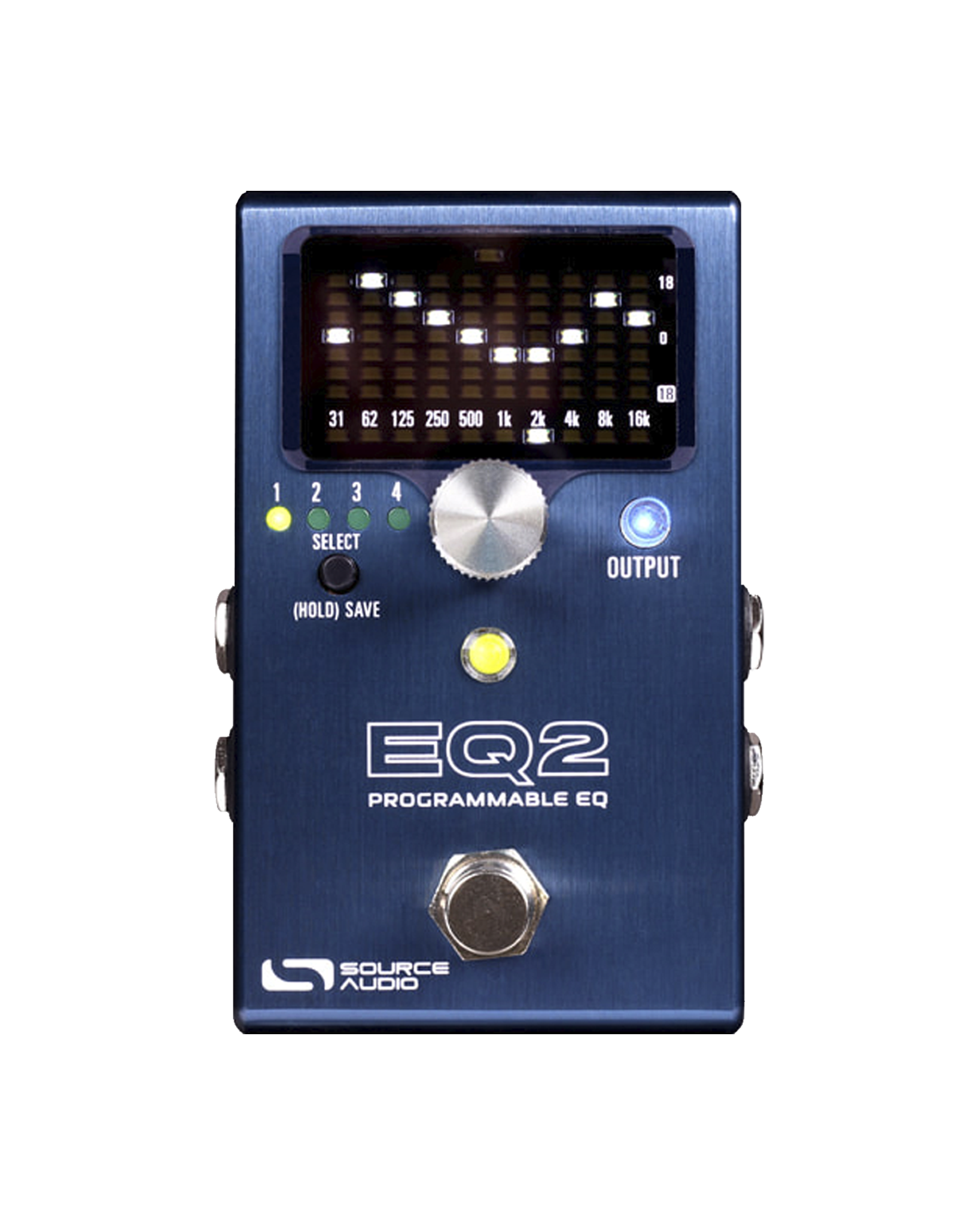

Source Audio EQ2 Programmable Equalizer Pedal

The ultimate tone-sculpting tool for guitar, bass, and keyboards.

The EQ2 Programmable Equalizer by Source Audio is a 10-band graphic and parametric EQ with stereo routing, MIDI control, and 128 presets. It offers ±18dB boost/cut per band, a built-in tuner, and customizable frequency bands, making it an indispensable tool for precision tone-shaping.

Key Features

• 10 Adjustable Frequency Bands – Fully customizable EQ spectrum from 20Hz to 20kHz.

• Dual EQ Processing – Run two separate EQ settings simultaneously, each independently routed to either stereo output.

• Stereo Routing – Supports split mode, allowing users to create separate EQ curves for each output.

• Built-in Tuner – Hidden chromatic tuner for space-saving functionality.

• Neuro Editor Compatibility – Customize parameters, store presets, and access a growing library of user-created sounds via the Neuro Desktop Editor & Mobile App.

• Expanded Preset Functionality – 4 or 8 onboard presets, with 128 MIDI-accessible presets.

• Additional Volume Boost – Includes an extra +12dB of volume boost, allowing for precise gain staging.

• Noise Gate & Limiter – Optional noise gate and limiter ensure clean signal processing.

Specifications

• Frequency Range – 20Hz–20kHz.

• Boost/Cut – ±18dB per band.

• Presets – 4 or 8 onboard, 128 via MIDI.

• Inputs/Outputs – Stereo In, Stereo Out, MIDI I/O.

• Power Requirements – 9V DC, 200mA.

• Dimensions – 4.5” x 4.5” x 2”.
