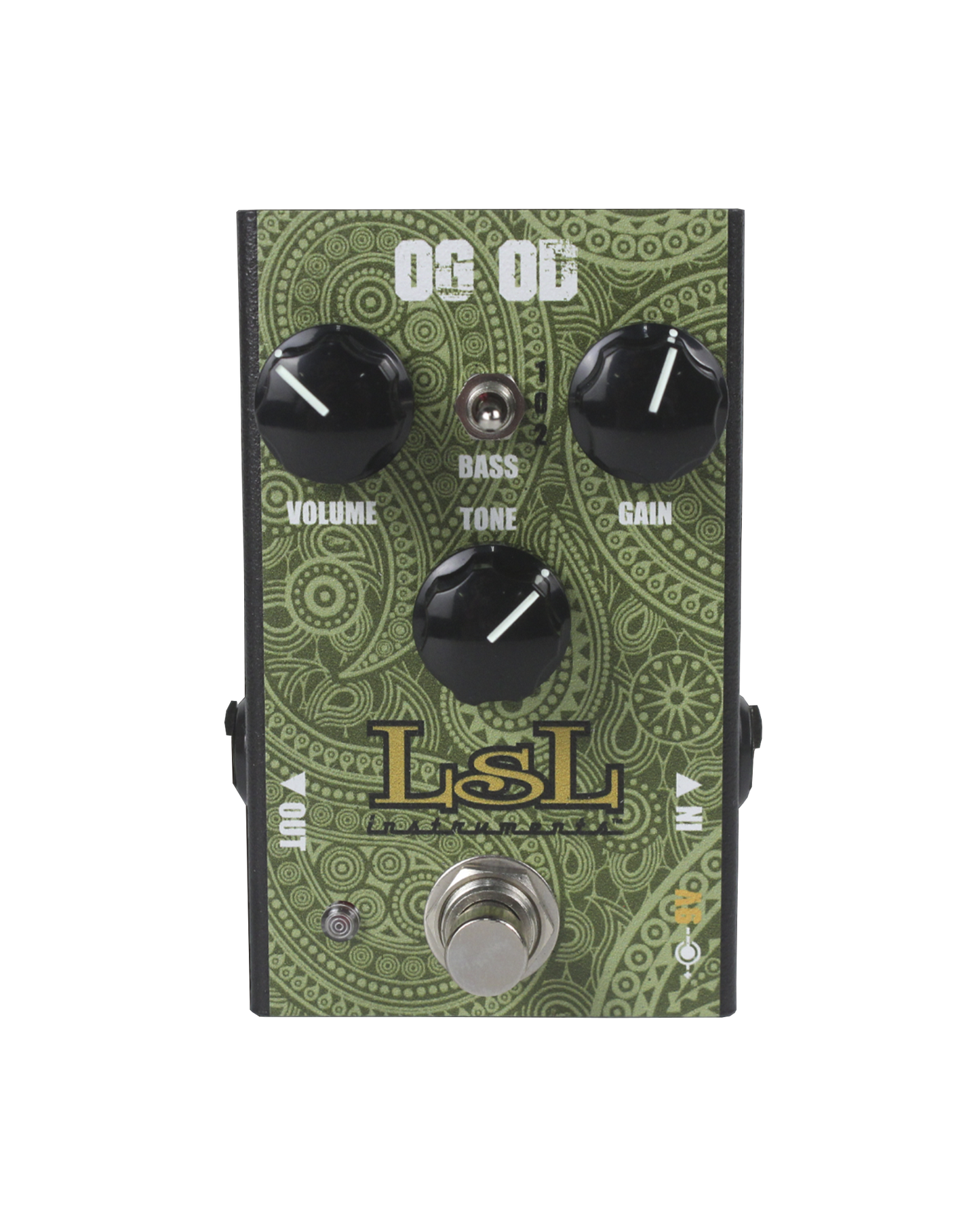

LsL OG OD Overdrive Pedal

A refined take on the classic overdrive circuit.

The OG OD is a dynamic overdrive pedal designed to push your amp into natural breakup while preserving the character of your guitar. Featuring a three-way bass switch, it allows for customized low-end response, making it adaptable for light rock, blues, indie, and hard rock tones.

Special Features:

Three-Way Bass Switch: Adjusts low-end response for different tonal flavors.

RC4558P IC Chip: Provides warm, responsive gain.

Transparent Overdrive: Enhances your guitar’s natural tone without excessive coloration.

True Bypass: Maintains signal integrity when disengaged.

Specifications:

• Circuit Type: Analog

• Controls: Volume, Tone, Gain, Bass Switch

• Input Impedance: 500kΩ

• Output Impedance: 10kΩ

• Power Requirements: 9V DC, 5mA

• Bypass Type: True Bypass

• Dimensions: Standard LSL enclosure
