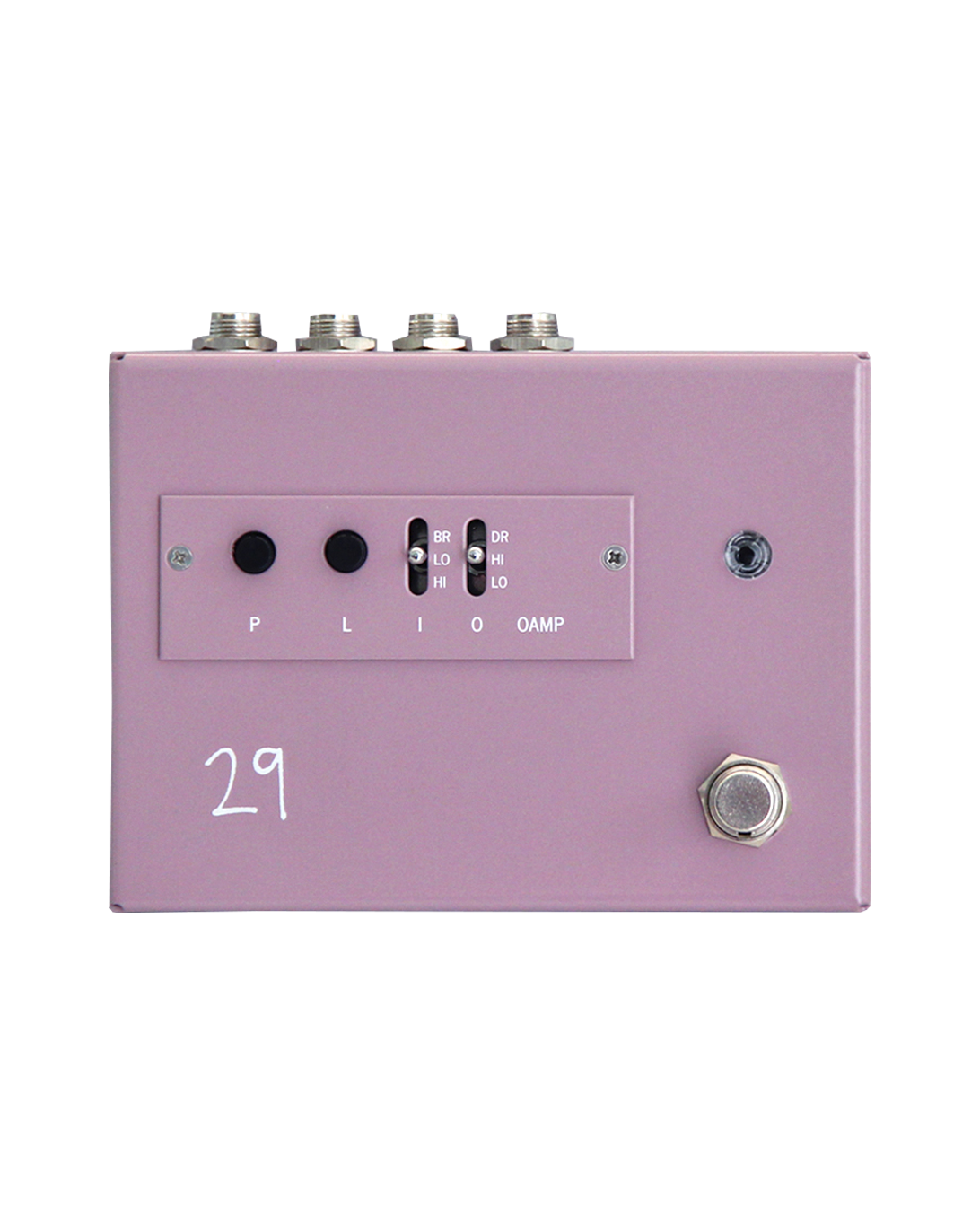

29 Pedals OAMP Output Amplifier Pedal

The OAMP Output Amplifier is a high-headroom output driver designed to replace conventional buffers, line drivers, and preamps. With up to 29dB of gain, it provides final signal conditioning, tonal sweetening, and the ability to drive long cable runs or capacitive loads. The alt path allows for local channel-switching on your pedalboard, while the WHATEVER power supply ensures compatibility with a wide range of voltages.

Special Features:

29dB Gain Range: Adjustable gain stages for precise output control.

Alt Path Switching: Enables local channel-switching when bypassed.

High-Drive Capability: Supports passive splitters and multiple loads.

WHATEVER Power Supply: Accepts 7.5V to 35V AC/DC with either polarity.

Specifications:

• Gain: Up to 29dB

• Level Control: Adjusts gain between two stages without affecting impedance

• Presence Control: Adds mid-scoop for amp-like response

• Bypass Mode: True bypass

• Alt Path: Active when pedal is off, allowing for local channel-switching

• Power Requirements: Accepts 7.5V–35V AC or DC (either polarity)

• Current Draw: Approximately 100mA

• Inputs/Outputs: Mono In, Mono Out

• Drive Capability: Can drive down to 600 ohms

• Dimensions:

  • Imperial: 3 5/8” (depth) x 3 3/8” (width) x 2 1/8” (height)

  • Metric: 90mm (depth) x 85mm (width) x 52mm (height)

Perfect for players looking for a robust output amplifier that enhances signal integrity and drive.
